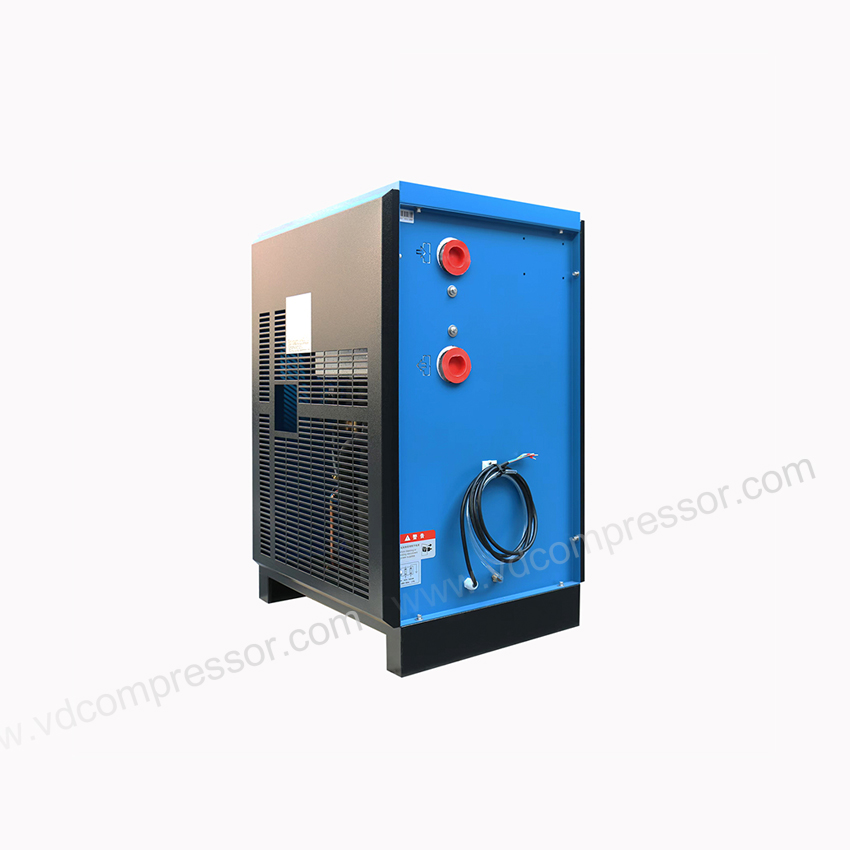

VRD Series
Refrigerated Air Dryer
For Compressed Air
Working Principle Of Refrigerated Dyer
The amount of water vapor in compressed air is determined by the temperature of the compressed air:Lowering the temperature while maintaining the same pressure can reduce the content of water vapor decreases, and excess water vapor condenses into a liquid. Freeze drying air dryer uses a refrigeration type device to cool compressed air to a certain dew point temperature, precipitation of water, discharge of water, thus drying compressed air.

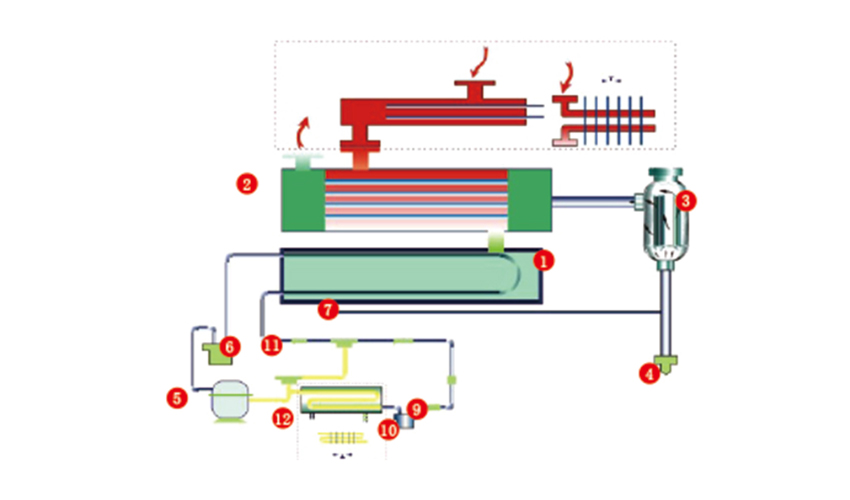

1. Evaporator 2. Heat exchanger
3. Cyclone separator 4. Automatic drain
5. Compressor 6. air-liquid separator
7. Expansion valve 8. Air precooler
9. Windows 10. Drying filter
11. Thermal bypass valve 12. Condenser

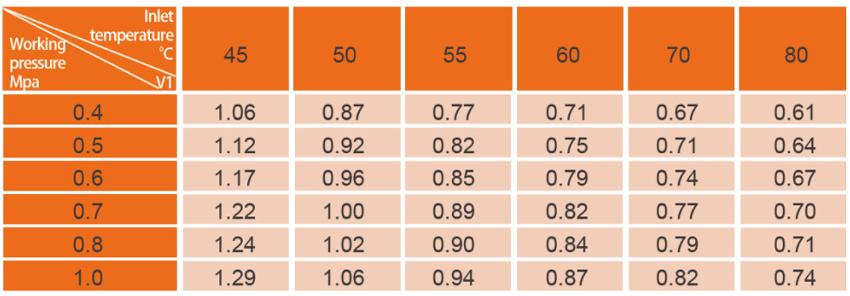

Working pressure and temperature correction coefficient (V1)

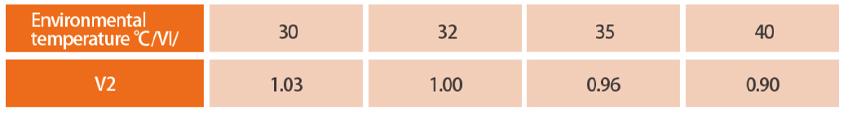

Environmental temperature correction coefficient (V2)
When selecting a dryer, it is necessary to consider the pressure correction coefficient and temperature correction coefficient. The standard operating conditions for refrigerated dryers :
1. Inlet pressure: 0.70Mpa
2. Inlet temperature:50℃
3. Environmental temperature: 32℃
When selecting the model, it is necessary to consider the coefficients corresponding to the actual working conditions for correction. If you need detailed technical support, please contact our company directly

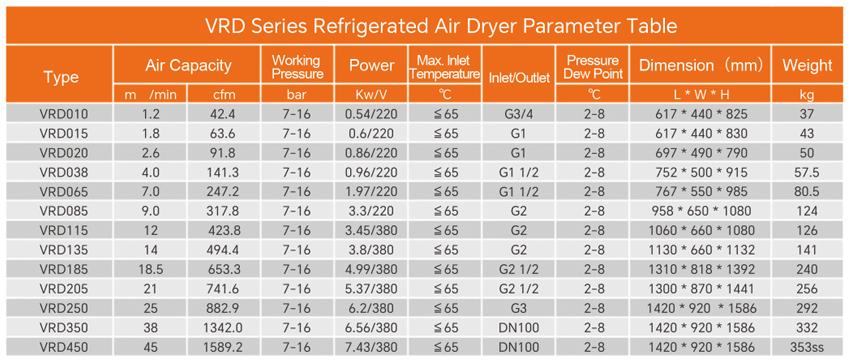

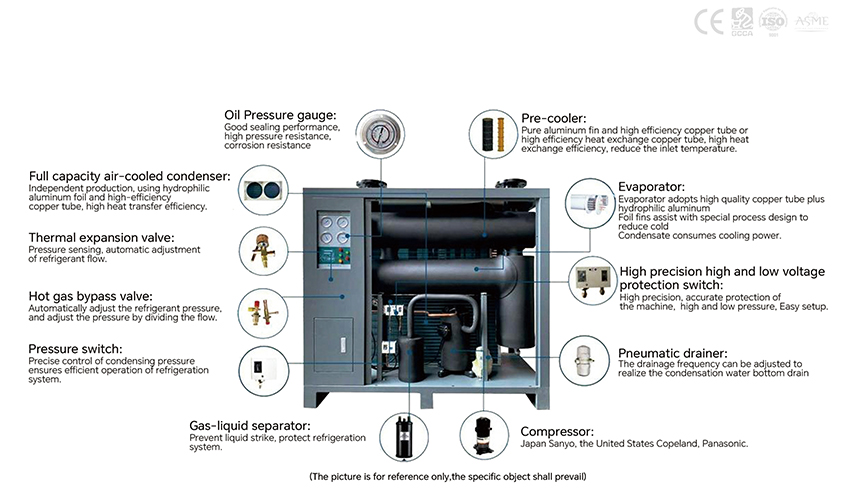

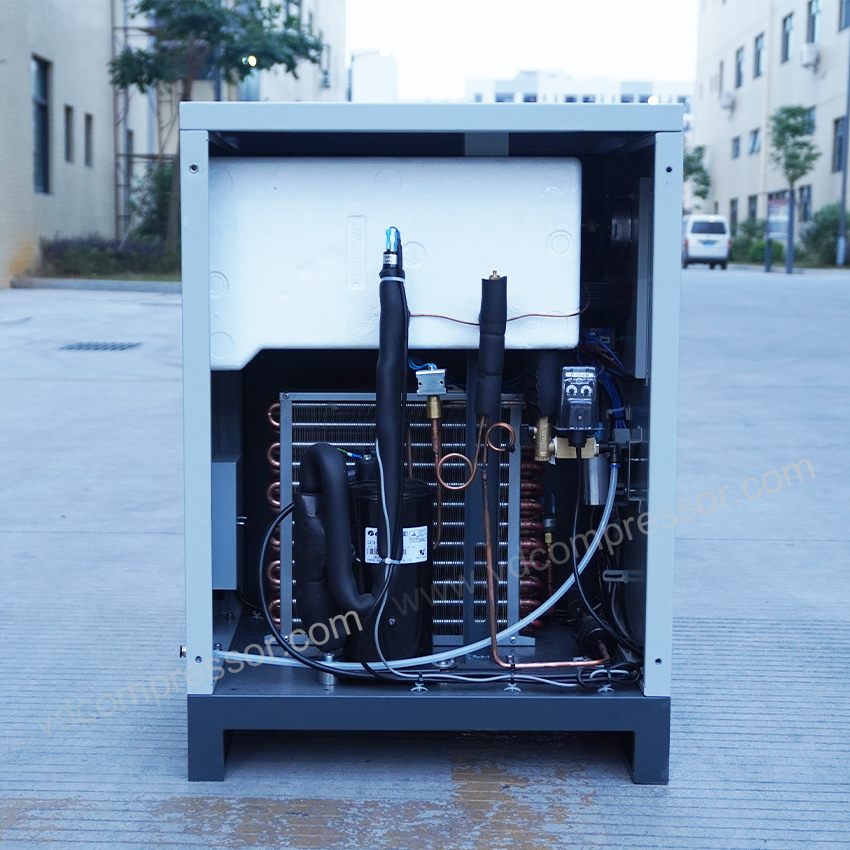

Professional design for compressed air dryer
Heavy load design layout, compact structure, and no foundation installation
Low pressure loss, more energy-efficient
The heat exchanger adopts a countercurrent design, with high heat exchange efficiency and small volume;
The air-liquid separator adopts a multi-stage separation method to ensure the quality of compressed air after drying;
Easy to understand and operate control panel
Adopting high-quality refrigeration compressors, reliable performance, energy-saving and efficient
