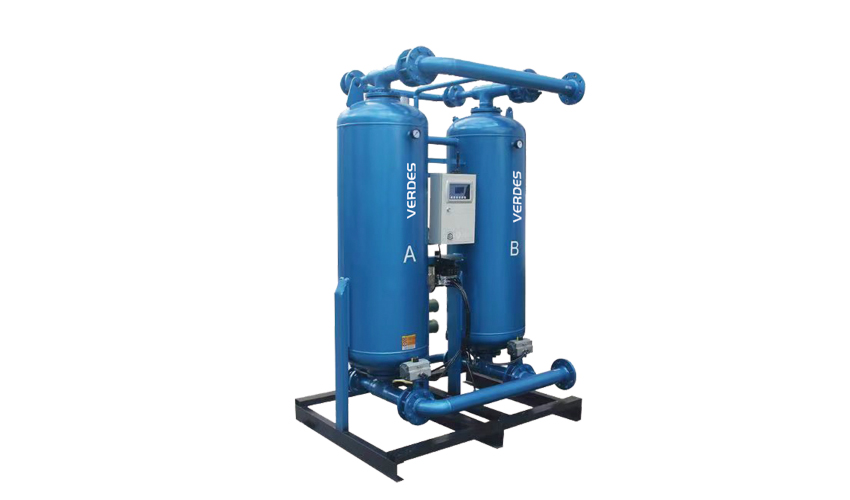

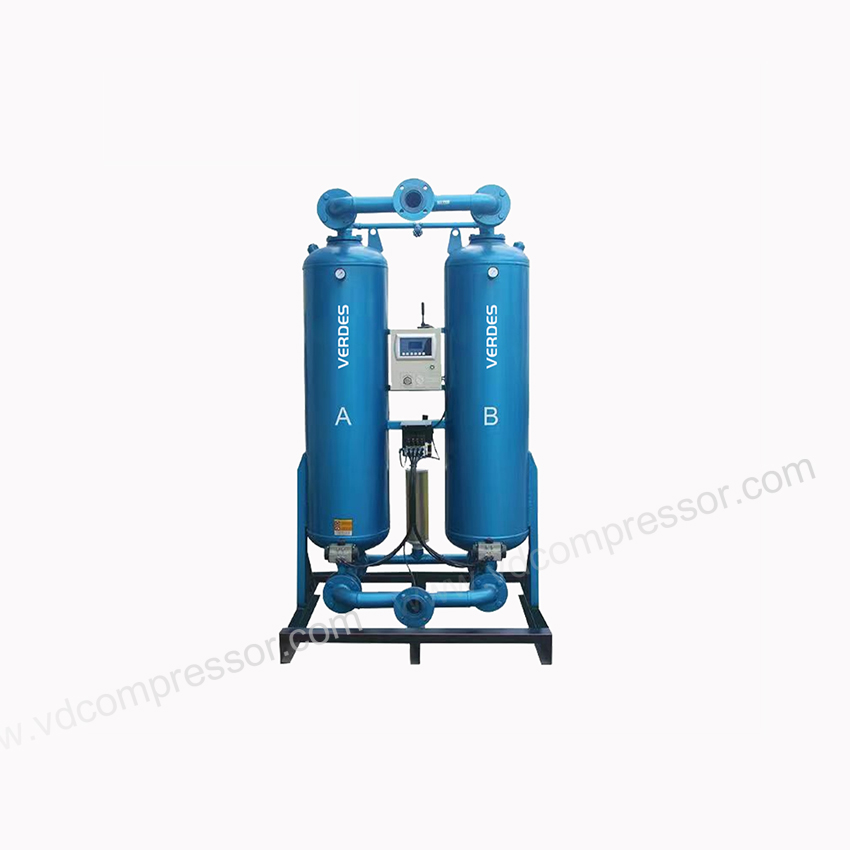

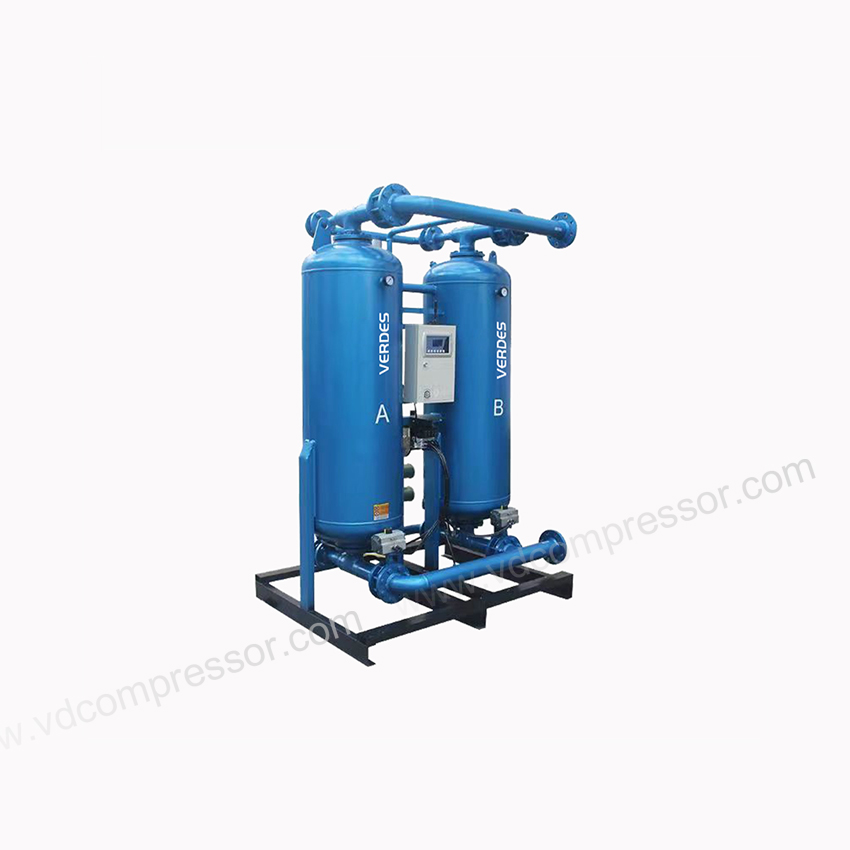

VAD Series Adsorption Air Dryer
For Compressed Air

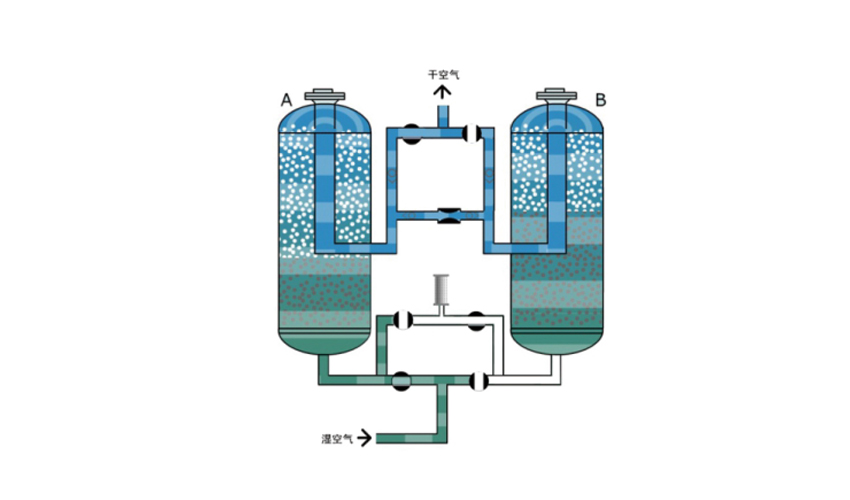

Working principle of heat less adsorption dryer
The heat free regeneration adsorption dryer utilizes gas and solid particles, especially when in contact with certain porous par tides water molecules in compressed air become enriched characteristics in particles. The amount of water adsorbed on the ad sorben tat a certain temperature increasing with the increase of water vapor partial pressure, At a certain partial pressure of water vapor, the adsorption capacity of water decreases withincreasingtemperature.Water content is easy under low temperature andhigh pressure being adsorbed, Water is easily desor bed at high or low temperatures. The vacuum dryer is benefficial using this characteristic of adsorbent to achieve the transition bet weenadsorption regeneration adsorption to achieve continuous drying of compressed air through conversion.

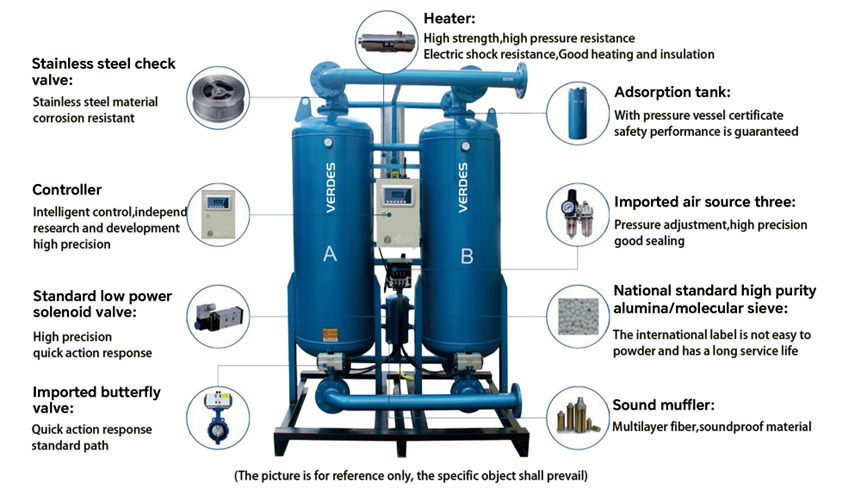

High quality components
1、Ad opting imported single-chip mi crocont rollers to form a multi fun ctional electronic control core, with multiple operation modes available
2、High quality mu fer ensures low noise
3、Reliable pneumatic control components with a design lifespan ofup to2 million times
4、Highly efficient adsorbent with high strength and wear resistance, with along service life

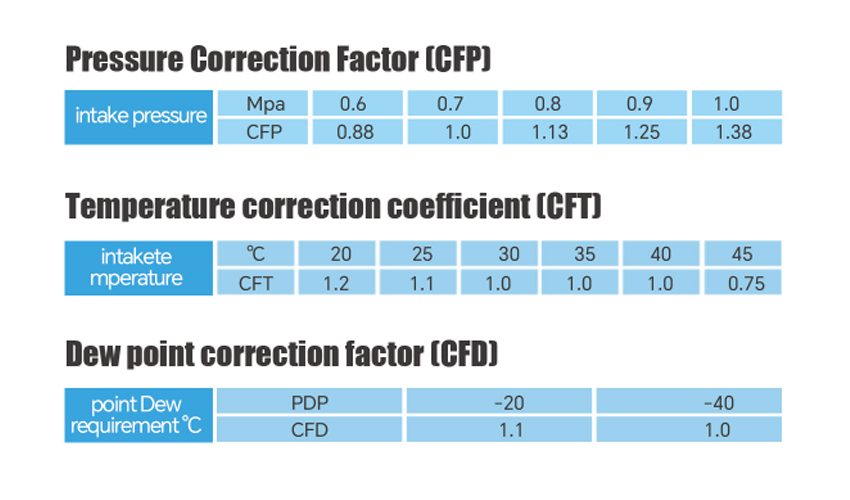

1、select the minimum inlet corrected pressure coefficient (CFP) for the dryer(when deter mining the minimum working pressure of the dryer, the pressure loss of the front-end equipment in the system must be considered)
2、Select the maximum inlet temperature correction factor (CFT) f or the dryer.
3、Select the dew point correction factor(CFD).
CFP*CFT*CFD The minimum processing air volume of the dryer=intake airflow rate/CFP * CFT*CFD

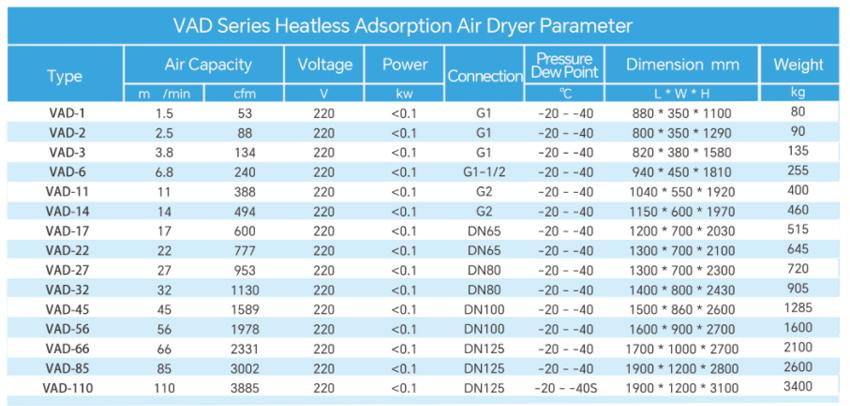

Select the model in the table based on the minimum flow rate th at the dryer should meet.
Professional design for compressed air drying
1.The perfect dual adsorption tower structure design, high-per fomanceand reliable valve components,ensure reliable operation and long service life.
2.Efficient molecular sieve combination, with a larger adsorption surfacearea and stronger adsorption effect.
3.Low noise, low vibration.
4.Microcomputer control and user-friendlyoperation interface, achieving unmanned operation
*The company keeps improving the products and reserves the right to change the design.
Parameters are subject to change without notice.
Models with dew point <-60℃ can be customized.
