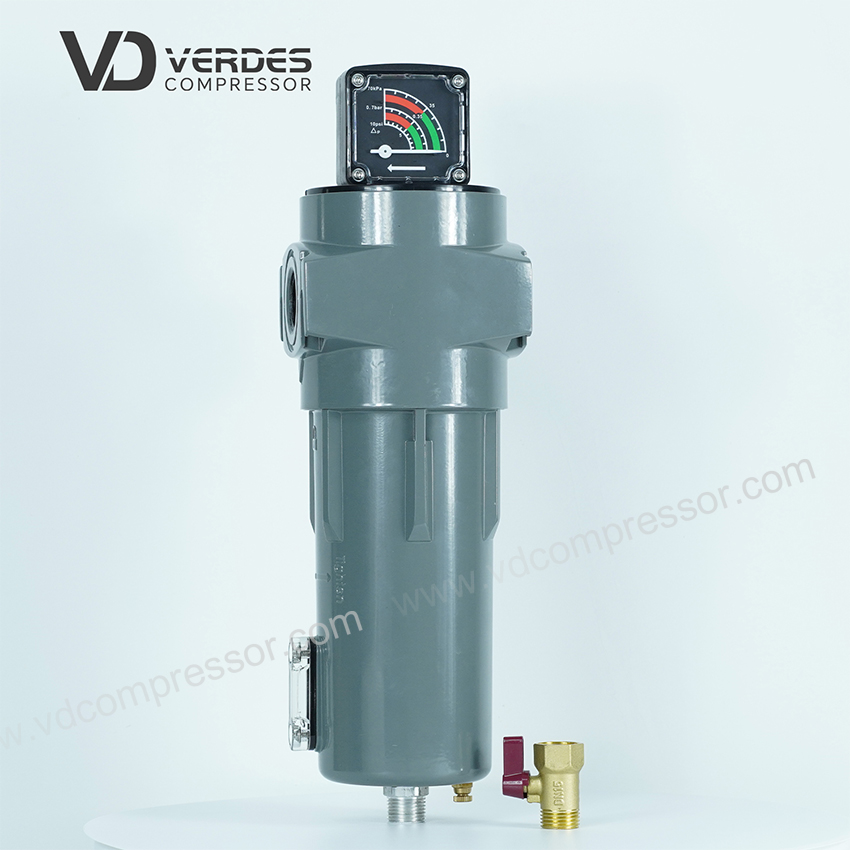

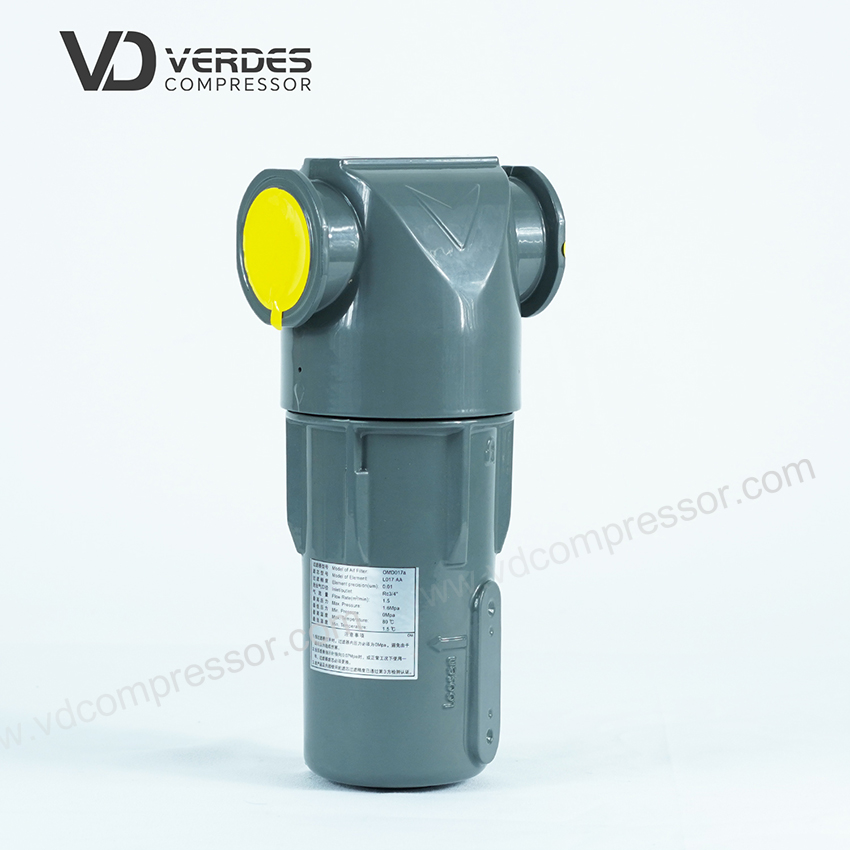

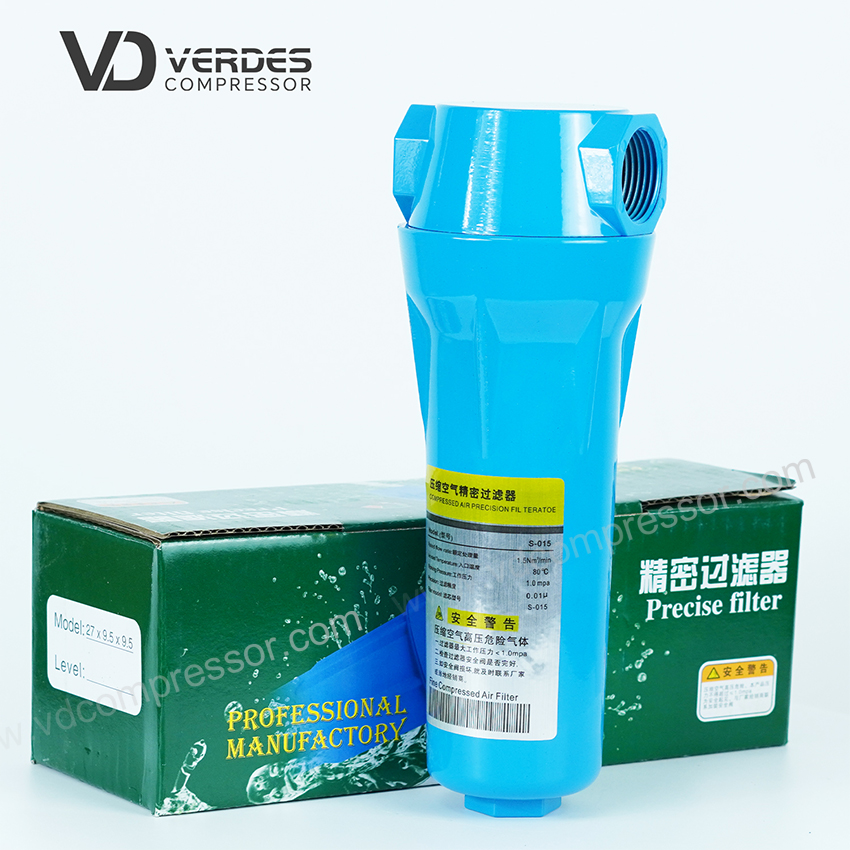

VDF Series Precision Air Filter
For Compressed Air
Working principle of pipe line filter

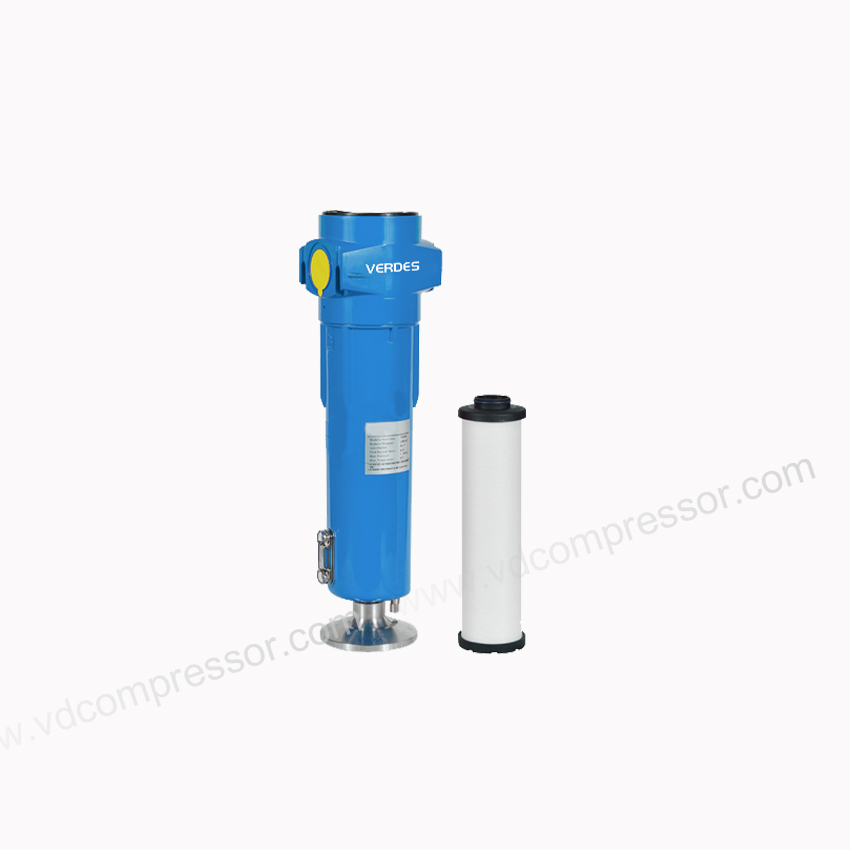

The shell is generally made of aluminum alloy, carbon steel, and stainless steel materials, and the interior is made of using a tubular filter element as a filtering element, according to different filtering media and designs choose different filtering elements for the process to meet the requirements of compressed air quality.Utilizing physical blocking techniques (using direct interception, inertial capture, and Brownian transport)A device that uses the principle of dynamic air filtration to separate other components in a medium.Filter aerosol impurities such as solid particles, water droplets, and oil mist in the air to the main equipment for obtaining air purification.
Professional design for compressed air purification
Effectively collect and filter aerosol impurities such as oil mist, dust, solid particles, water droplets, and oil mist in the air using air filtration principles such as direct interception, inertial capture, and Brownian motion
The shell is made of aviation grade aluminum alloy and high-quality carbon steel material
The aluminum alloy shell has undergone anodizing treatment and epoxy resin dry powder anti-corrosion and rust prevention treatment
High quality carbon steel shell undergoes epoxy resin dry powder anti-corrosion and rust prevention treatment

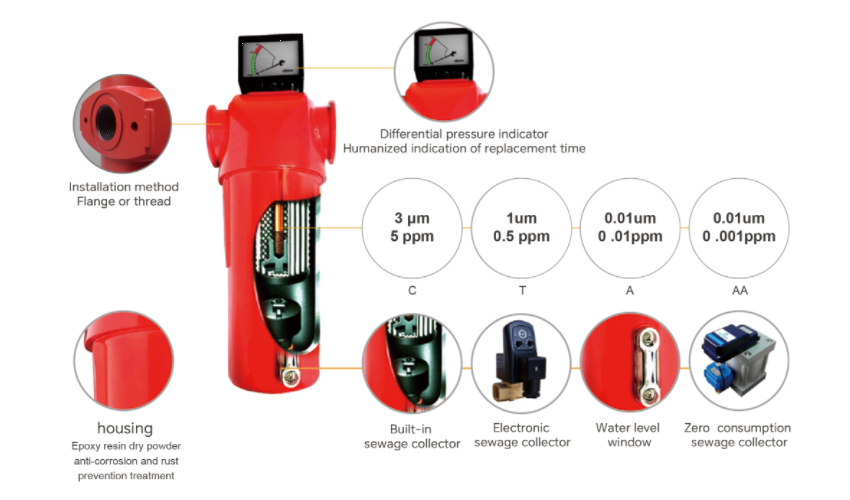

Humanized indication of replacement time for pressure difference indicator
The water level window is convenient for monitoring the liquid level and reminding preventive maintenance situations
Automatic sewage discharge device effectively discharges pollutants
Manual pressure relief valve with extra protection
Remarks :
1、Filter element accuracy based on ISO8573

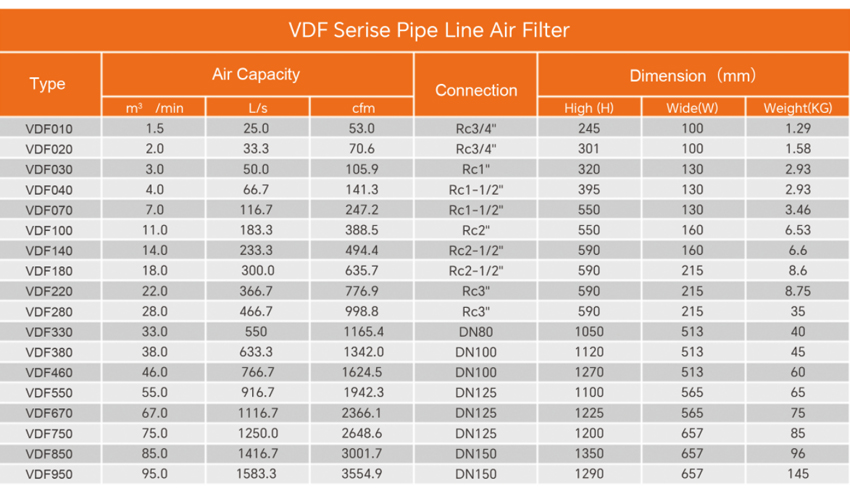

2、The processing capacity under different pressure states should be corrected according to the correction coefficient, and it should be noted when ordering
