VDX SERIES
VDX 10-350
FIXED SPEED DIRECT DRIVEN
SCREW AIR COMPRESSOR
7.5KW-250KW
lOver Sized Air-end , Low Speed , No Overheat Problem
lIP54 Motor,SKF Bearing,F Level Insulation
lAll Eloctric Components Are Europran Brand,Schneider Magnetic Contactor,All CE Certificated Components
lStar-Delta starting reduces electrical surge during startup

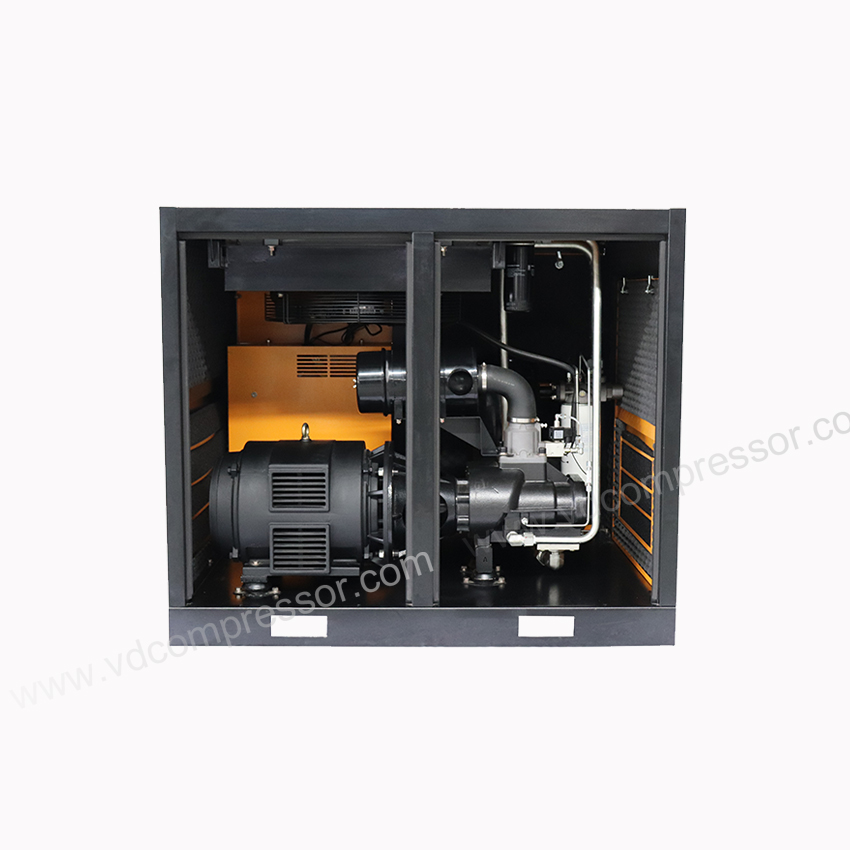

lThe Motor And Air-end Are Connected By A Flexible Coupling,Ensuring High Efficiency

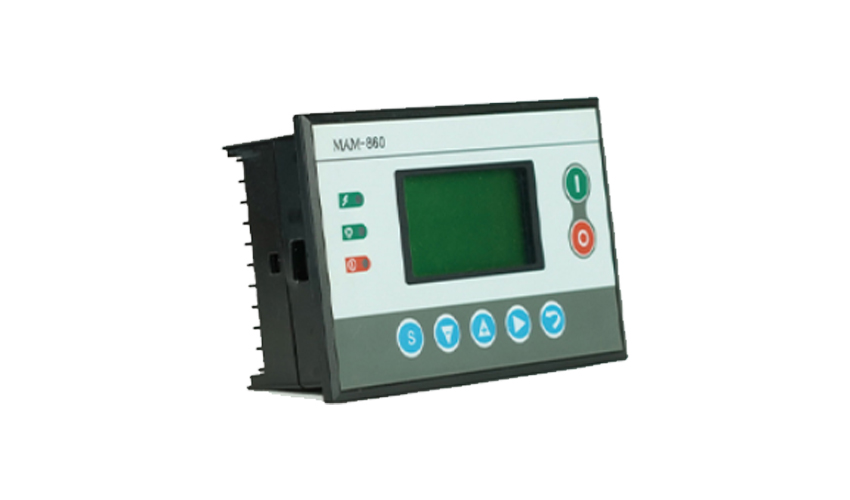

smart control panel
lTwo language can be selected(English/Chinese)
lMonitor & control key compressor functions Protect compressor in the event of faults(Overload, high temperature)
lProvide service required information(Replacement time for air filter, oil filter, oil gas seperator, and lubricating oil).
lControl panel has the remind&record funtion, show the compressor situation clearly

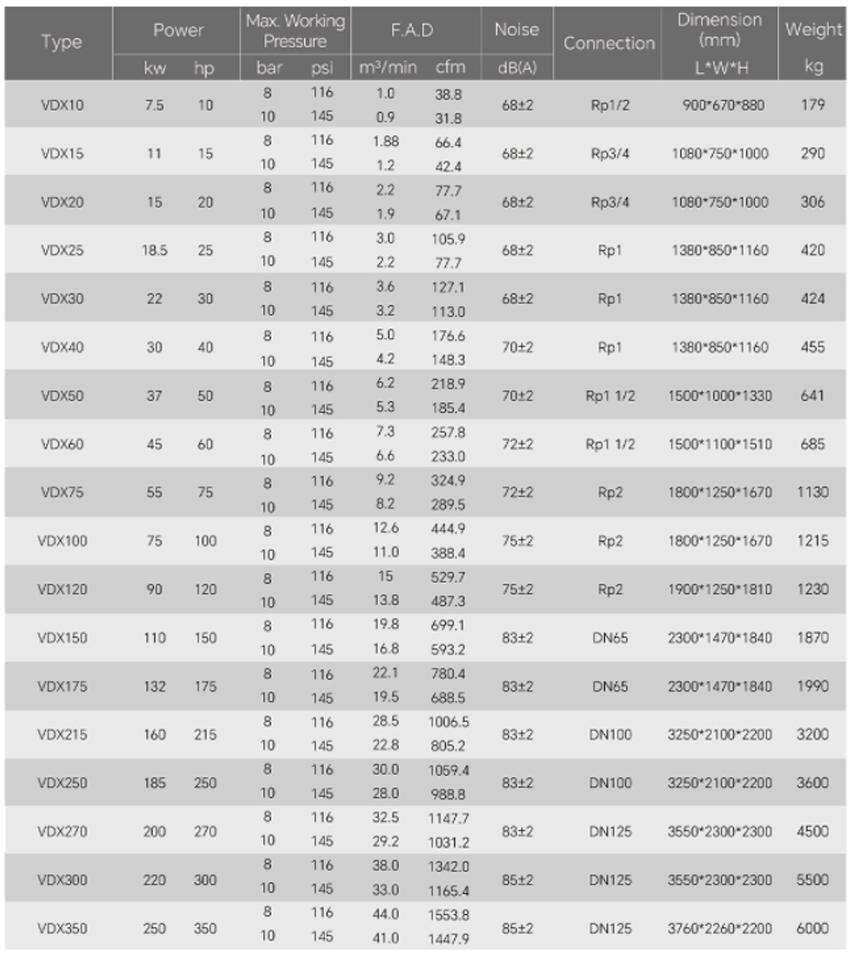

Technical Parameter
VDX Series Fixed Speed Screw Air Compressor(Direct Drive)
-According to the standard of GB 19153-2009
-Compressor stage:One stage compression
-Standard power supply:380V/50Hz/3Ph
-Exhaust temperature:Ambient Temperature+15
-Please contact us for any specification that is not within the above mentioned standards.
