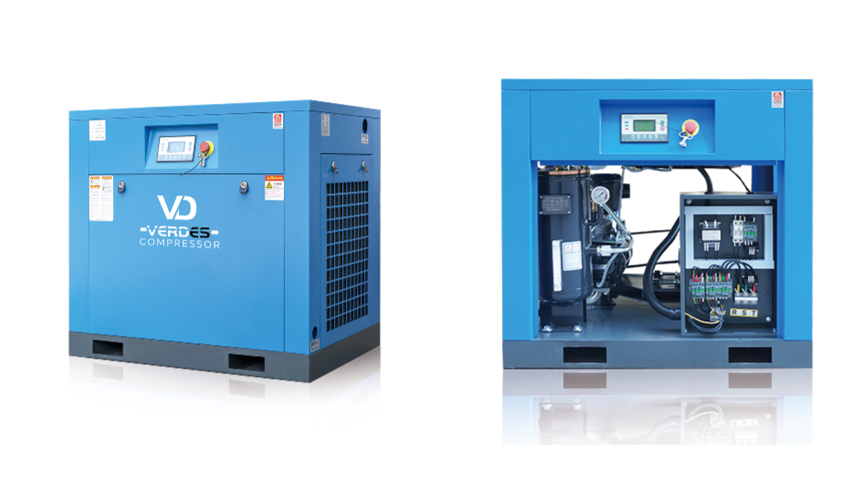

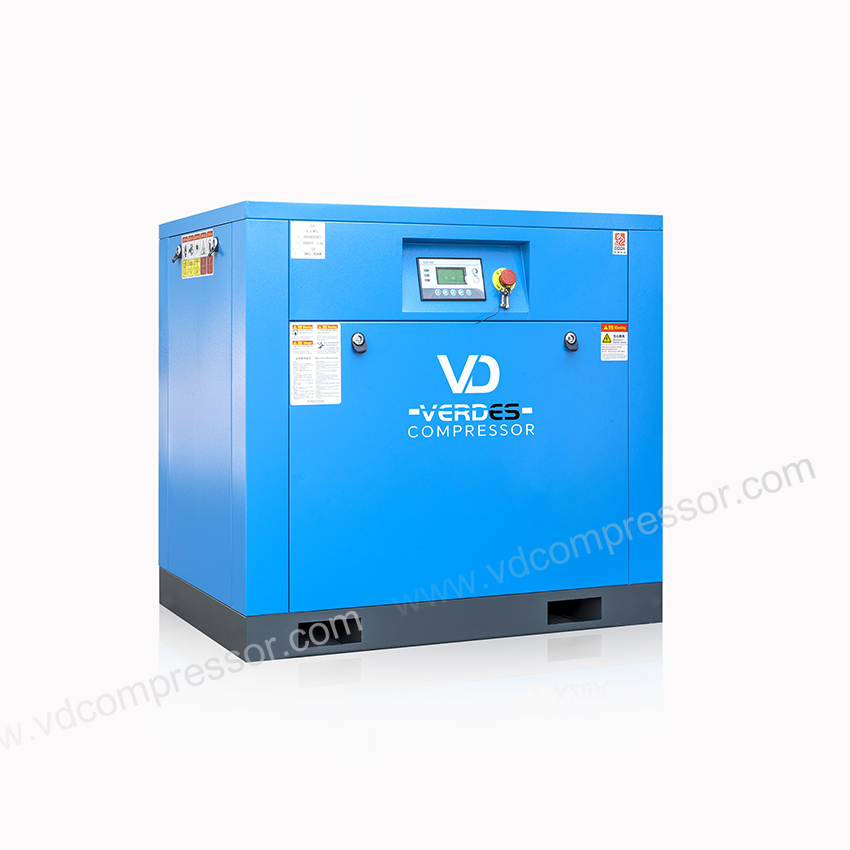

VDX SERIES
VDX 10 - 75- B
FIXED SPEED BELT DRIVEN
SCREW AIR COMPRESSOR
7.5 kW-55 k
lOver Sized Air-end , Low Speed , No Overheat Problem
lIP54 Motor,SKF Bearing,F Level Insulation
lAll Eloctric Components Are Europran Brand
lStar-Delta starting reduces electrical surge during startup
lThe Motor And Air-end Are Connected By A Flexible Coupling,Ensuring High Efficiency

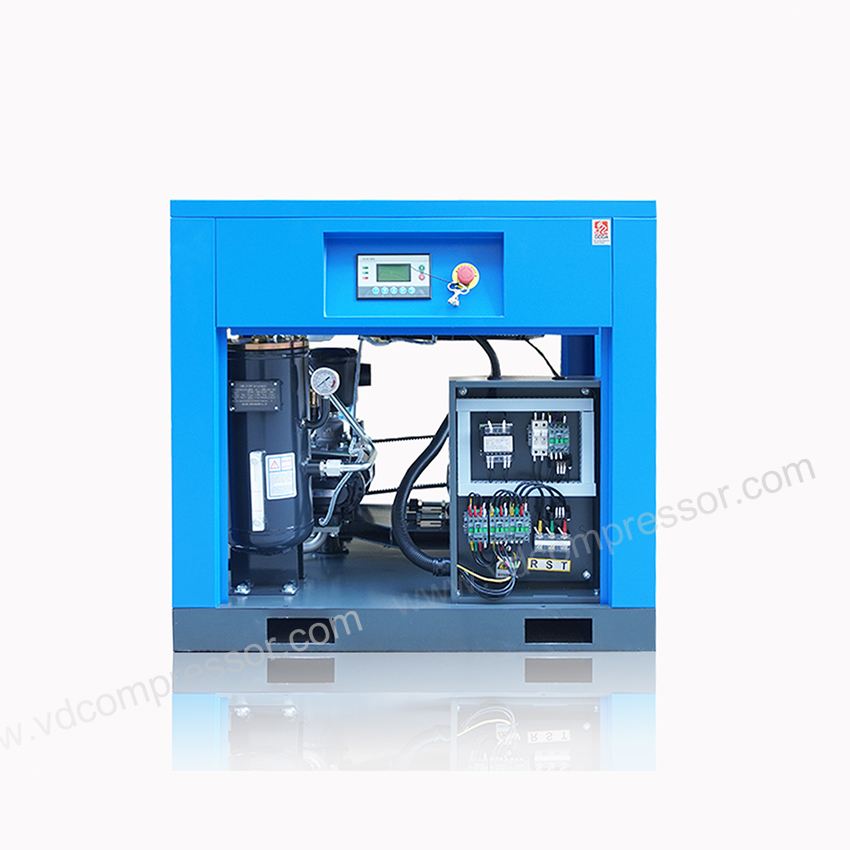

smart control panel
lTwo language can be selected(English/Chinese)
lMonitor & control key compressor functions Protect compressor in the event of faults(Overload, high temperature)
lProvide service required information(Replacement time for air filter, oil filter, oil gas seperator, and lubricating oil).
lControl panel has the remind&record funtion, show the compressor situation clearly
Intelligent Micro-Computer Control System

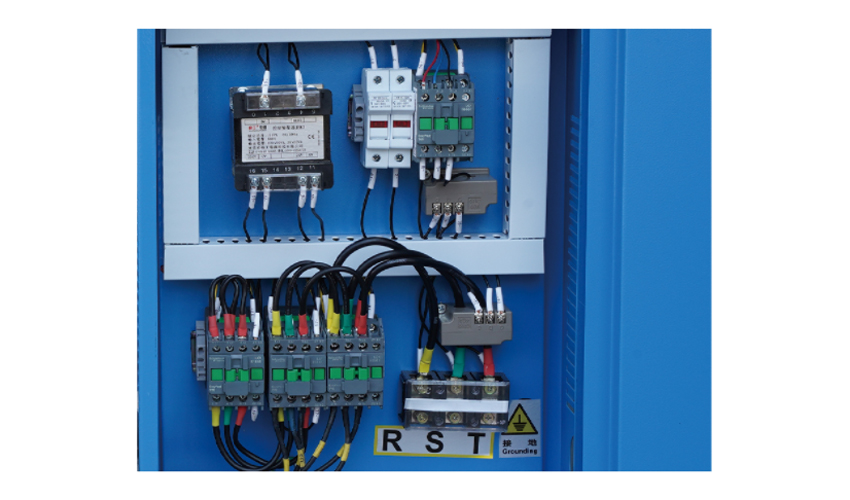

Schneider magnetic contactor , All CE certificated components

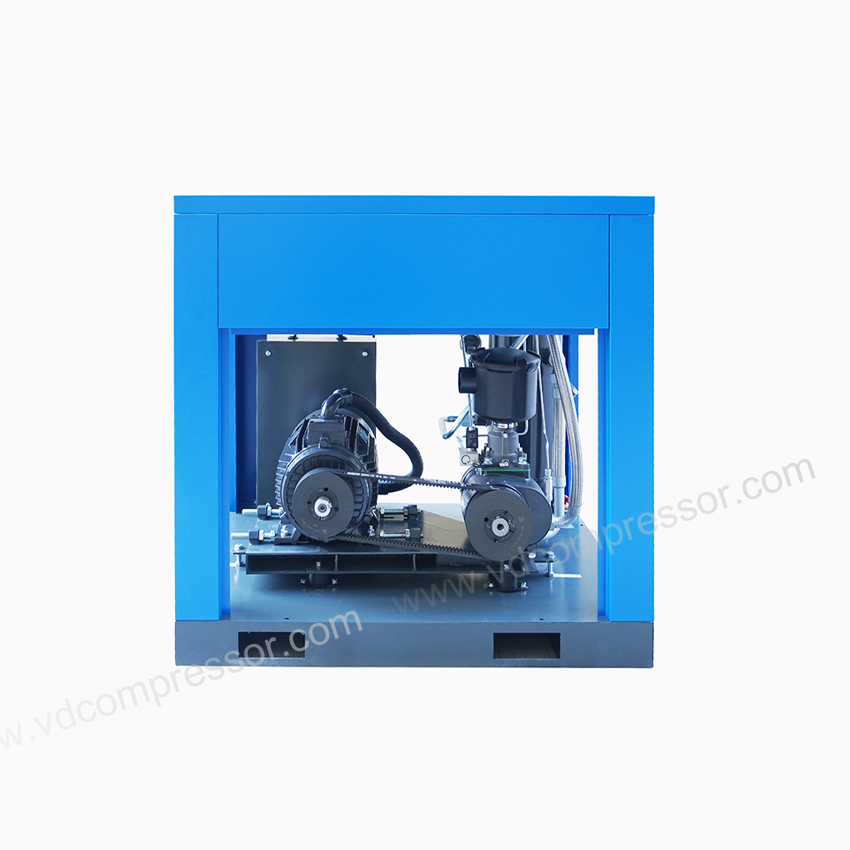

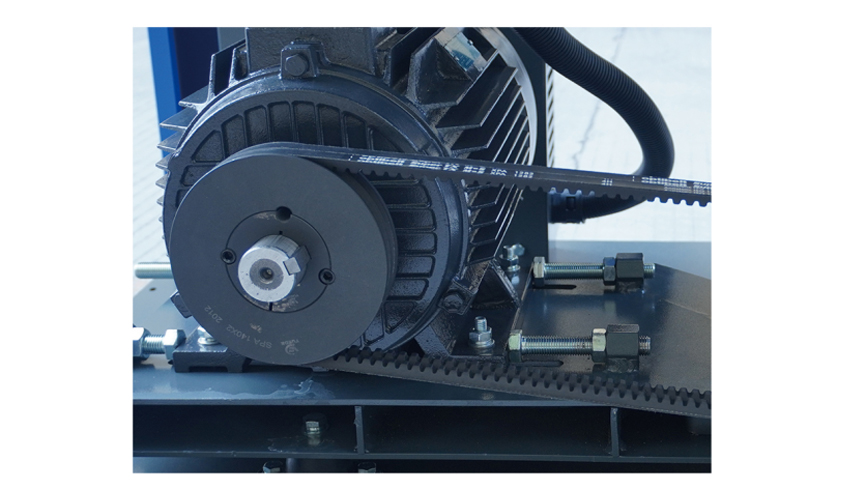

Belt Driven
Belt is Germany OPTI brand,ensure the product quality

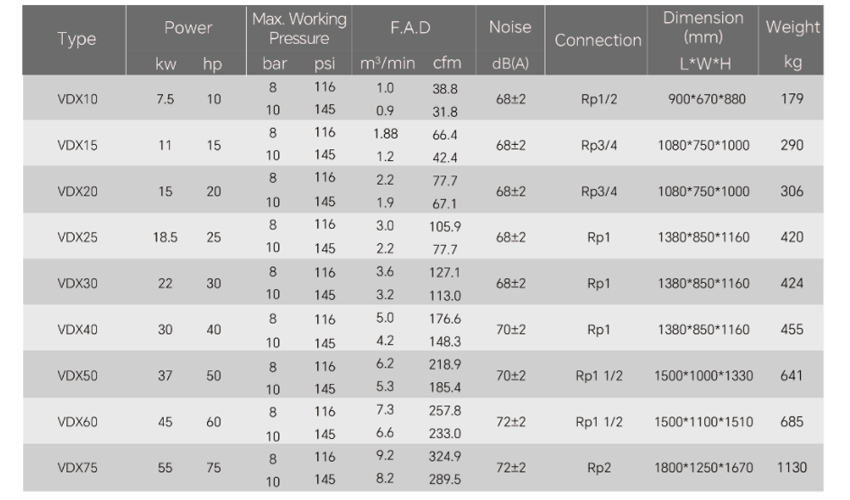

Technical Parameter
VDX Series Fixed Speed Screw Air Compressor(Belt Drive)
-According to the standard of GB 19153-2009
-Compressor stage:One stage compression
-Standard power supply:380V/50Hz/3Ph
-Exhaust temperature:Ambient Temperature+15
-Please contact us for any specification that is not within the above mentioned standards.
