SAVING ENERGY
30% - 50%
Products Features & Benefits
35%
Energy Saving
Up to 35% energy savings compared to fixed-speed compressors.
0–100%
Adaptive Air Supply
Adjusts output 0–100% automatically, matching exact air demand.
65dB(A)
Lower Operating Cost
Noise as low as 65dB(A) with minimal maintenance costs.

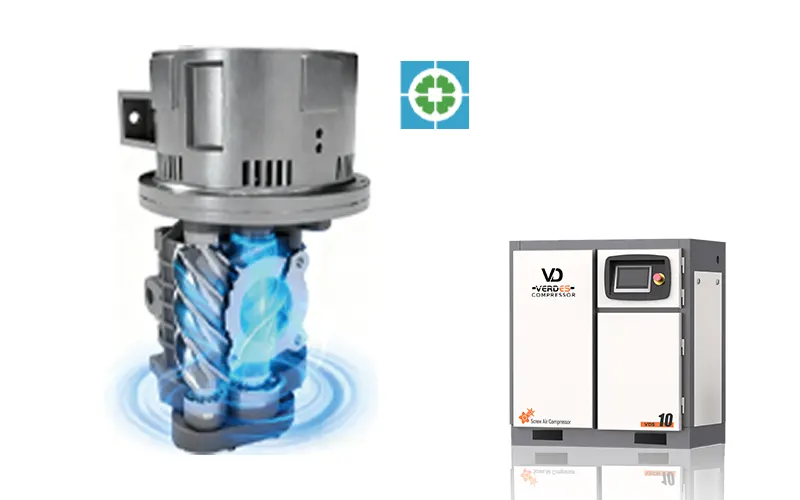

Why Choose VD PM VSD Screw Air Compressor?
Unmatched Energy Efficiency
PM VSD screw air compressor delivers high efficiency by matching air output to real demand. The permanent magnet motor reduces energy loss, while variable speed control minimizes unloading waste. It provides stable pressure, lower noise, reduced wear, and significant energy savings for applications with fluctuating air demand.
Minimizes Energy Waste from Overpressure
Intelligently maintains system pressure at the optimal level, eliminating the typical 30-50% energy waste caused by unnecessary over-pressurization in fixed-speed compressors.
Get in touch today!
Selecting the right screw compressor for your operation can be challenging.
Our experts are ready to assist you in finding the perfect solution to meet your specific needs.
Contact us today for tailored advice.

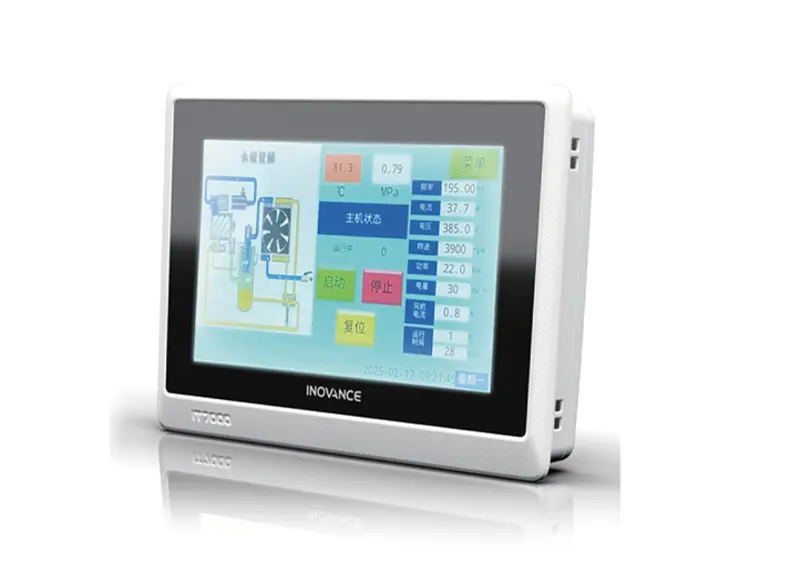

Smart Touch Screen Panel
multi-language support, reminder & record functions, clear compressor status display, key function monitoring & control
What is a PM VSD screw air compressor and how is it different?
A PM VSD screw air compressor combines a Permanent Magnet (PM) synchronous motor with a Variable Speed Drive (VSD). Unlike fixed-speed compressors that run constantly at full power, it dynamically adjusts motor speed to match exact air demand, eliminating energy waste and providing significant cost savings.
How much energy can a PM VSD compressor actually save?
Typically, it can reduce energy consumption by 30-50% compared to a fixed-speed unit. The savings come from eliminating unloaded run time and maintaining optimal pressure without wasteful over-pressurization.
Is the initial higher cost of a PM VSD compressor worth it?
Yes, for most facilities with variable air demand. The higher upfront investment is usually recovered within 1-3 years through dramatic energy savings and reduced maintenance costs, leading to a much lower total cost of ownership over its lifespan.
What maintenance does a PM VSD screw compressor require?
It requires standard maintenance like oil, filter, and separator changes. However, the VSD technology reduces mechanical stress and cycling, often extending component life and resulting in lower long-term maintenance costs compared to fixed-speed models.
Are these compressors suitable for harsh or dusty environments?
Yes, VD Compressor models are built with robust enclosures (often IP55 rated) and efficient cooling systems designed to perform reliably in demanding industrial environments like workshops and manufacturing plants.
Is a PM VSD compressor quiet to operate?
Yes, one of its advantages is significantly lower noise levels. Since the motor only runs as fast as needed, operation is quieter, often below 65 dB(A), creating a better working environment and reducing noise
Technical data
| Model | Motor Power (hp) | Max. Pressure (bar) | Capacity (m³/min)* | Connection |
| VDS10 | 10 | 12 | 1.1 | G 1/2 |
| VDS25 | 15 | 12 | 1.8 | G 3/4 |
| VDS20 | 20 | 12 | 2.4 | G 3/4 |
| VDS40 | 40 | 12 | 5.0 | G 1 |
| VDS50 | 50 | 12 | 6.5 | G 1 |
| *Capacity at 8bar | ||||
For full technical specification and more information refer to product catalog
Product Catalog
VDS series PM VSD Screw Air Compressor
Download →
What Our Customers Say About Us ?
Discover how VD Air Compressors boost efficiency and cut costs for your business.
Maria F.
ES-Air Compressor Distributor
Reliable performance and low failurerate. It is a product we feel comfortablerecommending to our customers.
Javier L.
ES-Factory Owner
Stable air supply and clean air quality.The integrated design helps us savespace in the workshop.
Carlos H.
MX-Industrial Equipment Trader
Good performance and clearpositioning. A solid product for smalland medium factories.
William Taylor
DE-Private Label Partner
Product quality is consistent, andconfigurations match our marketrequirements well. Communication anddelivery are reliable.
Anna M.
PL-Production Supervisor
We needed a compact and stable aircompressor for our production line. Thismodel meets our expectations andruns without issues.
Michael R.
USA-Private Label Partner
The compressor is easy to install andruns very smoothly. Performance isstable and maintenance isstraightforward. It fits well for small andmedium industrial customers.
Sarah L.
CA-Equipment Distributor
Solid build quality and stable operation.Installation is straightforward, whichreduces after-sales concerns.
Ahmed A.
UAE Engineering Contractor
We selected this compressor for an industrial air system project. The all-in-one design reduced installation time and simplified on-site work.
Applications
High-Demand Manufacturing Plants
Ideal for factories with fluctuating air consumption. The PM VSD system automatically adjusts motor speed based on real-time demand, reducing energy waste and ensuring stable air supply.
Automotive Manufacturing & Assembly Lines
Used for robotic systems, automated assembly, and precision tools. Provides constant pressure and eliminates pressure fluctuations, improving production efficiency and product consistency.
Textile Industry
Suitable for spinning, weaving, and dyeing processes with varying air demand. Variable speed control ensures energy savings while maintaining stable operation throughout production cycles.
Plastic & Injection Molding Industry
Supports molding machines and auxiliary systems with changing air consumption. Reduces unloaded running time, significantly lowering electricity costs.
Food & Beverage Industry
Used in packaging, bottling, and processing lines. Delivers stable and efficient compressed air while reducing overall energy consumption in continuous operations.
Electronics & Precision Manufacturing
Provides clean, stable air for sensitive equipment. Maintains precise pressure control to ensure product quality and reduce defect rates.
